Heatlight Heating

Heating Units – HLX

HLX Models are the inexpensive answer to spot heating, offering a cost effective way to provide instant heat to the smaller or localised area requiring comfort heating. Ideal for workshops, garages, Packing area’s, church halls, shops, warehouses and small factories. With a click of a switch the HLX modular heating system provides instant warmth and is designed to blend in with the decor of any modern or traditional amenity, commercial or industrial working environment.

Simple to install, the HLX models are supplied pre-wired in 1.5KW modules, complete with guards and wall mounting brackets. The can be linked in single,twin and triple formats. Not suitable for overhead suspension mounting.

Part No
Watts
Length
Height
Depth
Weight
Other Information
Web Link
HLX15G
1500
400mm
140mm
85mm
1.75KG
GOLD Dichrome Lamp
HLX15P
1500
400mm
140mm
85mm
1.75kg
Portable Unit c/w Adjustable Stand

HLW Range

This short wave infra-red heater has been developed to meet the requirements of today’s needs for outdoor heating. The heater is weatherproof and is suitable to be used outdoors in any application; it is perfectly safe to be used in the rain and continues to work even when subject to intense water jets. Using a quartz lamp especially tuned to give a warm colour of light it also delivers high energy instant heat.

Part Number
Wattage
Volts
Dimensions (mm)
Weight
Information
Website
L
W
D
HLW15
1500W
240v
480
120
120
1.7Kg
White
HLW15B
1500W
240v
480
120
120
1.7Kg
Black
HLW20BG
2000W
2000W lamp
HLW30BG
3000W
2 x 1500W Lamps Wired into mains

HLQ Range

HLQ pro models are designed for general internal installation or under waterproof canopies / roofs, providing quartz short wave high-energy instant infrared heat. With models from 3KW to 6KW they offer the instant answer to many zone or localised heating solutions. The units can be wall mounted or ceiling suspended, and come in single and three phase versions. They are manufactured from aluminium, and are finished in a neutral ivory powder coat finish. Guards come as standard with all models. All heaters are fitted with high efficiency gold shortwave lamps as standard.

Part Number
Wattage
Voltage
Length
Height
Depth
Weight
Website
HLQ30G
3000W
230V
420mm
430mm
110mm
4.5kg
HLQ60G
6000W
230V-380V
420mm
590mm
110mm
6.0kg

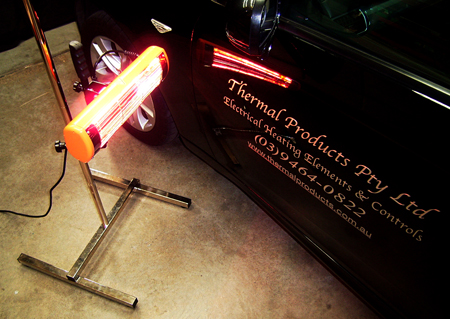

Paint Drying Units

PaintdryingCombining all the features of a flexible hand held heater, with all the benefits of a free standing paint dryer.
The 1000 Series is the ideal model to complement any existing full size drying system. Used with the stand, it also becomes an ideal additional heat source or spot drying unit.

This model is intended for use on small repairs and drying jobs. For example engine drying – stripe removal – filler drying and pre heating prior to spraying.

Part Number
Watts
Size
Description
HLPN1000
1000W
400x140x85mm
Hand Held paint dryer

Heat Lamp Spare Parts

Part Number
Description
363741
Triac, RD91, BTA40-600B Suitable for general purpose AC switching

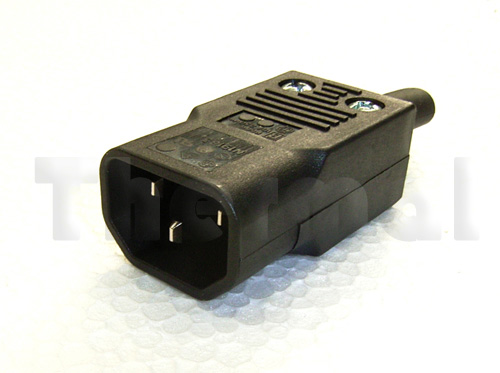

410061
IEC Power connector, straight plug, black

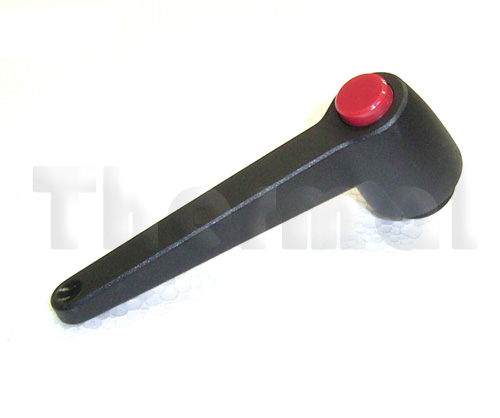

410078
M12 Ratchet Handle

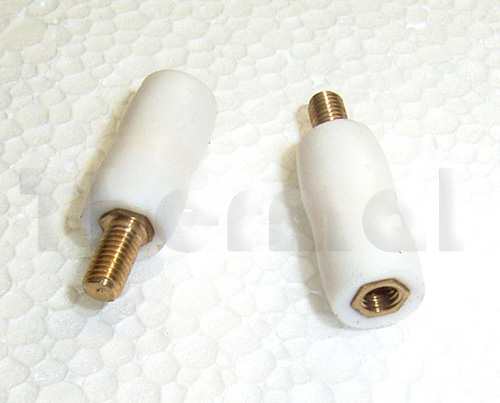

991463
PTFE Pillars

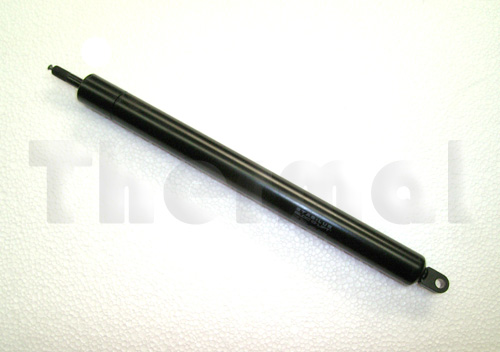

GSCOMP
800N gas strut complete with handle

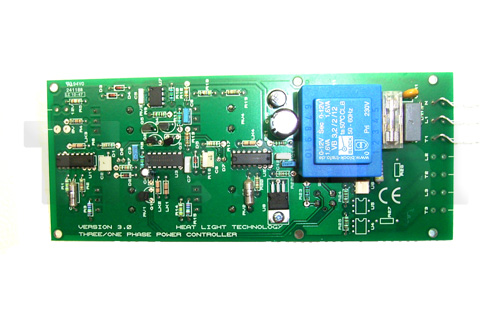

HLPPCB
PCB Single Phase, 220/240V UL Marked

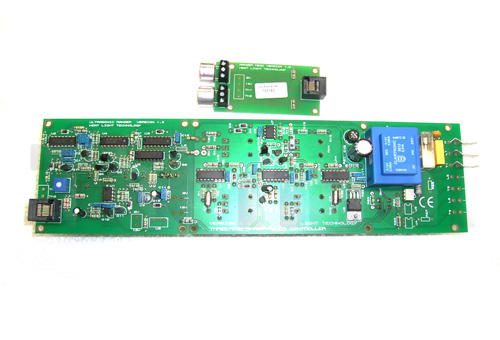

HLPPCB-DS
PCB Single Phase, 220/240V with Distance Sensor

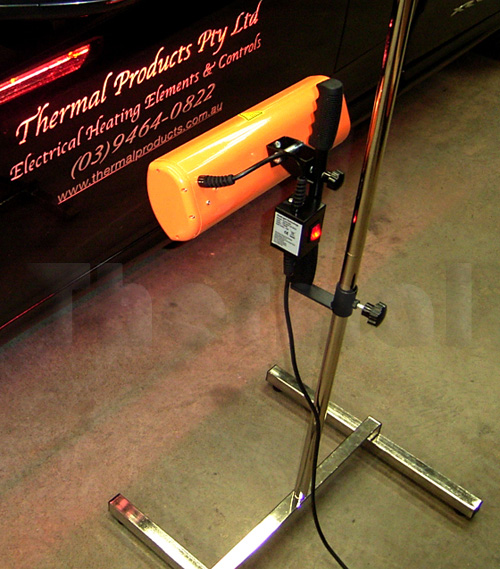

HLPS

Stand t/s HLPN1000 Heater

(Image shows Stand and heater complete)

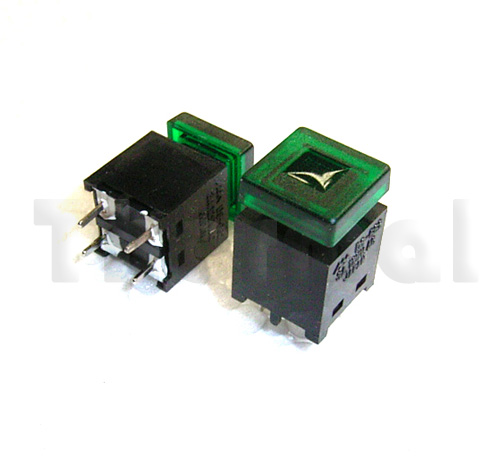

JX97
Green switch

Heat Lamps

Part Number
Wattage
Voltage
Length
Features
Suits
Alt Part Number
Further Information
54241037-small
54241037
1000W
240V
526mm
Ruby Jacketed Heat Lamp ceramic ends with leads
CM3, ETS2, ETS5, TRACKMASTER, HLP3000RC
380.07
54243022
54243022
300W
240V
235mm
Ceramic ends NO LEADS
64125020
64125020
500W
120V
235mm
Ceramic ends with Leads
64125021
64125021
500W
120V
225mm
Metal ends with Leads
64241013
1000W
240V
230mm
Jacketed heat lamp ceramic ends with leads
64241015
1000W
240V
350mm
Jacketed Heat Lamp Ceramic ends NO Leads
64241017
100W
240V
118mm
Jacketed Heat Lamo Ceramic ends NO Leads
64241021
64241021
1000W
240V
345mm
Ceramic ends with Leads
64241022
64241022
1000W
240V
345mm
Metal ends with Leads
64241027
1000W
240V
370mm (Mounting Holes)
Metal Strap Ends
13713X, All IRT Applications
64241030
1000W
240V
346mm
Ruby Jacket Ceramic Ends with Leads
64241034
1000W
240V
526mm
Ruby Jacket Ceramic Ends with Leads

HLP3000

HLP4000

HLP6000

64241072
1000W
240V
346mm
Gold Lamp Ceramic ends with Leads
HLP1000
64241077
1000W
240V
346mm
Gold Lamp Ceramic ends with Leads
HLP1000
64241334
1300W
240V
254mm
Ruby Red Lamp Ceramic ends NO leads
64241503
1500W
240V
543mm
Frosted Lamp Ceramic Ends With Leads
64241525
1500W
240V
440mm
Frosted Lamp with leads
64241530
1500W
240V
346mm
Ruby Jacket lamp ceramic ends with leads
64241536
1500W
240V
784mm
Ruby Jacket lamp ceramic ends with leads
64241538
1500W
240V
346mm
Ruby Jacket Heat Lamp Ceramic Ends With Leads
64241539
1500W
240V
346mm
Ruby Jacket Heat Lamp Ceramic Ends With Leads, 6.3mm tab receptacle terminal
64241621
1600W
240V
493mm
Metal Ends with Leads
64241622
1600W
240V
498mm
Ceramic Ends with Leads
64242013
64242013
200W
240V
118mm
Ceramic Ends No Leads
64242014
200W
240V
220mm
Jacketed lamp ceramic ends no leads

64242070
2000W
240V
353mm
Gold Lamp Ceramic cemented ends with Leads

PDF

64242073
2000W
240V
440mm
Gold lamp with Leads
HLW20BG
64243011
300W
240V
118mm
Jacketed Heat LampCeramic ends no leads
64243012
64243012
300W
240V
220mm
22mm OD Quartz Jacket Ceramic ends NO LEADS

PDF

64245014
64245014
500W
240V
220mm
22mm OD Quartz Jacket Ceramic ends NO LEADS
64245021
64245021
500W
240V
235mm
Ceramic ends with Leads
64245022
64245022
500W
240V
225mm
Metal ends with Leads
64245028
64245023
500W
240V
220mm
Ceramic Ends NO Leads
64245028
64245028
500W
240V
235mm
Ceramic ends NO LEADS
64248531
850W
240V
195mm
Ruby Jacket Lamp ceramic ends with leads
Hotspot, ETSHT
380.04

PDF

64482521
2500W
480V
732mm
Ceramic Ends With Leads
6424153B
1500W
240V
784mm
Ruby Jacket lamp ceramic ends with leads
ETS3, BOOTHMASTER
380.11
