Cable & Accessories

Fuses & Fuse Wire



Part Number Description
9031 FUSE WIRE CARD 8A & 16A
9032 FUSE WIRE CARD 8A 16A 20A & 30A
TFW6-25 FUSE WIRE REEL 25g 6A
TFW8-25 FUSE WIRE REEL 25g 8A
TFW10-25 FUSE WIRE REEL 25g 10A
TFW12-25 FUSE WIRE REEL 25g 12A
TFW16-25 FUSE WIRE REEL 25g 16A
TFW20-25 FUSE WIRE REEL 25g 20A
TFW25-25 FUSE WIRE REEL 25g 25A
TFW30-25 FUSE WIRE REEL 25g 30A
TFW32-25 FUSE WIRE REEL 25g 32A
TFW35-25 FUSE WIRE REEL 25g 35A
TFW40-25 FUSE WIRE REEL 25g 40A
TFW50-25 FUSE WIRE REEL 25g 50A
TFW8-50 FUSE WIRE REEL 50g 8A
TFW10-50 FUSE WIRE REEL 50g 10A
TFW16-50 FUSE WIRE REEL 50g 16A
TFW20-50 FUSE WIRE REEL 50g 20A
TFW25-50 FUSE WIRE REEL 50g 25A
TFW30-50 FUSE WIRE REEL 50g 30A
TFW32-50 FUSE WIRE REEL 50g 32A
TFW35-50 FUSE WIRE REEL 50g 35A
TFW40-50 FUSE WIRE REEL 50g 40A
TFW50-50 FUSE WIRE REEL 50g 50A
TFW63-50 FUSE WIRE REEL 50g 63A
TFW6-100 FUSE WIRE REEL 100g 6A
TFW8-100 FUSE WIRE REEL 100g 8A
TFW10-100 FUSE WIRE REEL 100g 10A
TFW16-100 FUSE WIRE REEL 100g 16A
TFW20-100 FUSE WIRE REEL 100g 20A
TFW25-100 FUSE WIRE REEL 100g 25A
TFW32-100 FUSE WIRE REEL 100g 32A
TFW35-100 FUSE WIRE REEL 100g 35A
TFW50-100 FUSE WIRE REEL 100g 50A
TFW63-100 FUSE WIRE REEL 100g 63A
TFW20-500 FUSE WIRE REEL 500g 20A
TFW25-500 FUSE WIRE REEL 500g 25A
TFW30-500 FUSE WIRE REEL 500g 30A
TFW32-500 FUSE WIRE REEL 500g 32A
M400 FUSES 6.3A 5X20mm
M401 FUSE 125MA 5X20mm
M402 FUSE 8A 5X20mm
M403 FUSE 10A 5X20mm
M404 FUSE 1A 6.3X32mm
M405 FUSE 12.5A 5X20mm
M406 FUSE 1.5A 6.3X32mm
M407 FUSE 2A 6.3X32mm
M408 FUSE 3.15A 6.3X32mm
M409 FUSE 5A 6.3X32mm
M410 FUSE 6.3A 6.3X32mm
M411 FUSE 8A 6.3X32mm
M412 FUSE 160MA 5X20mm
M413 FUSE 10A 6.3X32mm
M414 FUSES 16A 6.3X32mm
M415 FUSES 12.5A 6.3X32mm
M416 FUSES 20A 6.3X32mm
M417 FUSES 7A 6.3X32mm
M418 FUSE 1.6A 6.3X32mm
M419 FUSE 12A 6.3X32mm
M420 FUSE 15A 6.3X32mm
M421 FUSES 10A 10X38mm
M422 FUSES 250MA 5X20mm
M423 FUSES 1A 5X20mm
M424 FUSES 1.25A 5X20mm
M425 FUSES 1.6A 5X20mm
M426 FUSES 2A 5X20mm
M427 FUSES 3.15A 5X20mm
M428 FUSES 5A 5X20mm
M429 FUSE HIGH VOLTAGE 0.7AMP 5KV
M450 FUSE HOLDER – 5mm x 20mm
M451 FUSE HOLDER – 6.3mm x 32mm

Wire / Wire Sheathing

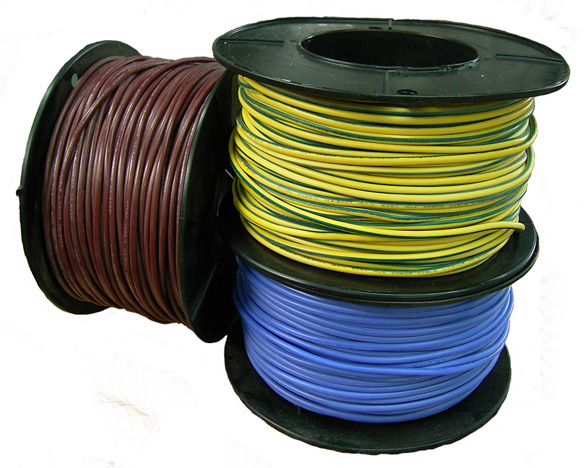

sc-cableWe stock a range of high temperature (180°C) Single Core silicon cable on the shelf. Predominantly in 1mm, 1.5mm & 2.5mm in Blue, Brown, Black, Red and Green Yellow. Other colours are available on request, but usually attract a minimum run quantity. The cable we supply is a multi-stranded nickel-coated copper conductor with a 180°C silicon sheath. Some Examples are listed below:

Part No.
Description
Colour
SC-24180-BLK
Single Core 24/0.20 (0.75mm) 180° – 100m Roll
Black
SC-24180-BLU
Single Core 24/0.20 (0.75mm) 180° – 100m Roll
Blue
SC-24180-RED
Single Core 24/0.20 (0.75mm) 180° – 100m Roll
Red
SC-24180-BRN
Single Core 24/0.20 (0.75mm) 180° – 100m Roll
Brown
SC-24180-GRN/YLW
Single Core 24/0.20 (0.75mm) 180° – 100m Roll
Green / Yellow
SC-24180-WHI
Single Core 24/0.20 (0.75mm) 180° – 100m Roll
White
SC-32180-BLK
Single Core 32/0.20 (1.00mm) 180° – 100m Roll
Black
SC-32180-GRN/YLW
Single Core 32/0.20 (1.00mm) 180° – 100m Roll
Green / Yellow
SC-32180-RED
Single Core 32/0.20 (1.00mm) 180° – 100m Roll
Red
SC-30180-BLK
Single Core 30/0.25 (1.50mm) 180° – 100m Roll
Black
SC-30180-BLU
Single Core 30/0.25 (1.50mm) 180° – 100m Roll
Blue
SC-30180-RED
Single Core 30/0.25 (1.50mm) 180° – 100m Roll
Red
SC-30180-BRN
Single Core 30/0.25 (1.50mm) 180° – 100m Roll
Brown
SC-30180-GRN/YLW
Single Core 30/0.25 (1.50mm) 180° – 100m Roll
Green / Yellow
SC-50180-BRN
Single Core 50/0.25 (2.50mm) 180° – 100m Roll
Brown
SC-50180-GRN/YLW
Single Core 50/0.25 (2.50mm) 180° – 100m Roll
Green / Yellow
SC-50180-RED
Single Core 50/0.25 (2.50mm) 180° – 100m Roll
Red
SC-50180-BLK
Single Core 50/0.25 (2.50mm) 180° – 100m Roll
Black
SC-50180-BLU
Single Core 50/0.25 (2.50mm) 180° – 100m Roll
Blue
SC-50180-WHI
Single Core 50/0.25 (2.50mm) 180° – 100m Roll
White

Fibre Glass Sheathing

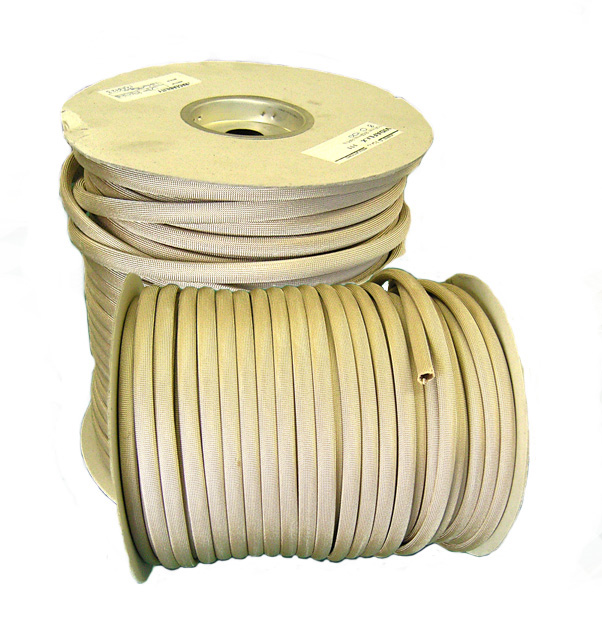

sheathingCheck the table below to see a complete list of the sizes available. Some sizes have limited availability which means that once our supplier has run out, we can no longer supply that size. The smaller diameter sleaving comes in rolls up to 250m, while the larger sizes (20mm +) are supplied in rolls of 50m. Diameter is measured as ID (Internal Diameter). Thermal Products stock fibre glass sleaving, in 6mm, 8mm and 10mm, with sizes from 2mm through to 35mm available. We can also supply silcon coated fibre glass sleaving in various diameters. This product is used to insulate cables in high temperature environments. Rated to 260°C. It is limited in its ability to provide electrical insulation, which is why the silicon coated option is provided. Silicon coated fibre glass sleaving is not stocked.

Part No. Description Roll Size
VIDIII02.0
VIDAFLEX 111 Sleaving 2.0mm
100m Roll
VIDIII03.0
VIDAFLEX 111 Sleaving 3.0mm
100m Roll
VIDIII04.0
VIDAFLEX 111 Sleaving 4.0mm
100m Roll
VIDIII05.0
VIDAFLEX 111 Sleaving 5.0mm
100m Roll
VIDIII06.0
VIDAFLEX 111 Sleaving 6.0mm
100m Roll
VIDIII08.0
VIDAFLEX 111 Sleaving 8.0mm
100m Roll
VIDIII10.0
VIDAFLEX 111 Sleaving 10.0mm
100m Roll
VIDIII12.0
VIDAFLEX 111 Sleaving 12.0mm
75m Roll
VIDIII16.0
VIDAFLEX 111 Sleaving 16.0mm
50m Roll
VIDIII20.0
VIDAFLEX 111 Sleaving 20.0mm
30m Roll

Terminal Blocks

Image Partnumber Description
ICTB1MC Ceramic Terminal Block 1Way (6A) Brass Fittings
ICTB1B Ceramic Terminal Block 1 Way Closed Type with Fittings
ICTB2B Ceramic Terminal Block 2Way (30A) Brass Fittings
ICTB2BE Ceramic Terminal Block 2Way (30A) Brass Fittings
ICTB2MC Ceramic Terminal Block 2Way Closed type with fittings
ICTB3B Ceramic Terminal Block 3Way (30A) Brass Fittings
136/12 Plastic Terminal Strip, 12 Way, 10Amp
137/12 Plastic Terminal Strip, 12 Way, 25Amp
138/12 Plastic Terminal Strip, 12 Way, 50-70Amp

Other Spares

Image Part No. Description
550001 GEV550001 6.3mm Nickel Plated Quick Connect Terminals (100 pack) | Size: 1 – 2.5 mm | Max Temp: 340 °C
GEV550009 M5 Nickel Plated Ring Terminals (100 pack) | Size: 1 – 2.5 mm | Max Temp: 340 °C
550046550046 GEV550046 6.3mm Nickel Plated Quick Connect Terminals (100 pack) | Size: 2.5 – 6 mm | Max Temp: 340 °C
550047550047 GEV550047 6.3mm Piggy Back Quick Connect Terminals (100 pack) | Max Temp: 110 °C
550198550198 GEV550198 6.3mm Nickel Plated Flag Terminals (100 pack) | Size: 1 – 2.5 mm | Max Temp: 340 °C
