Comfort Heating

Heating Units – HLX

HLX Models are the inexpensive answer to spot heating, offering a cost effective way to provide instant heat to the smaller or localised area requiring comfort heating. Ideal for workshops, garages, Packing area’s, church halls, shops, warehouses and small factories. With a click of a switch the HLX modular heating system provides instant warmth and is designed to blend in with the decor of any modern or traditional amenity, commercial or industrial working environment.

Simple to install, the HLX models are supplied pre-wired in 1.5KW modules, complete with guards and wall mounting brackets. The can be linked in single,twin and triple formats. Not suitable for overhead suspension mounting.

Part No
Watts
Length
Height
Depth
Weight
Other Information
Web Link
HLX15G
1500
400mm
140mm
85mm
1.75KG
GOLD Dichrome Lamp
HLX15P
1500
400mm
140mm
85mm
1.75kg

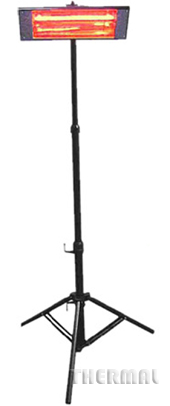

Portable Unit c/w Adjustable Stand

HLW Range

This short wave infra-red heater has been developed to meet the requirements of today’s needs for outdoor heating. The heater is weatherproof and is suitable to be used outdoors in any application; it is perfectly safe to be used in the rain and continues to work even when subject to intense water jets. Using a quartz lamp especially tuned to give a warm colour of light it also delivers high energy instant heat.

Part Number
Wattage
Volts
Dimensions (mm)
Weight
Information
Website
L
W
D
HLW15
1500W
240v
480
120
120
1.7Kg
White
HLW15B
1500W
240v
480
120
120
1.7Kg
Black
HLW20BG
2000W
2000W lamp
HLW30BG
3000W
2 x 1500W Lamps Wired into mains

HLQ Range

HLQ pro models are designed for general internal installation or under waterproof canopies / roofs, providing quartz short wave high-energy instant infrared heat. With models from 3KW to 6KW they offer the instant answer to many zone or localised heating solutions. The units can be wall mounted or ceiling suspended, and come in single and three phase versions. They are manufactured from aluminium, and are finished in a neutral ivory powder coat finish. Guards come as standard with all models. All heaters are fitted with high efficiency gold shortwave lamps as standard.

Part Number
Wattage
Voltage
Length
Height
Depth
Weight
Website
HLQ30G
3000W
230V
420mm
430mm
110mm
4.5kg
HLQ60G
6000W
230V-380V
420mm
590mm
110mm
6.0kg

Inslab Heating

In-slab h4 Reating uses heating cables embedded in a concrete slab floor to provide home heating. The slab stores the heat at night and releases it to provide continuous warmth to the home during the day. It also takes advantage of off-peak heating rates – and can be used in combination with other systems or as stand-alone heating using some day-rate energy.
In-slab heating is generally used in new constructions but can also be used on top of an existing slab – providing there is a sufficient top cover of new cement of at least 25mm.
In-slab heating cables available:



In Slab Heating
In Slab Heating
Reference Link
Part No.
Watts
Length
Part No.
Watts
Length
VCD215
215W
6m
VCD2150
2150W
62m
VCD395
395W
11m
VCD2360
2360W
68m
VCD460
460W
13m
VCD2850
2850W
80m
VCD520
520W
15m
VCD3050
3050W
87m
VCD630
630W
17.5m
VCD3400
3400W
97m
VCD710
710W
20.5m
VCD3720
3720W
107m
VCD820
820W
23m
VCD3950
3950W
115m
VCD890
890W
26m
VCD4420
4420W
125m
VCD1100
1100W
32m
VCD5350
5350W
155m
VCD1370
1370W
39m
VCD6550
6550W
190m
VCD1550
1550W
45m
VCD1790
1790W
51m

Under Tile Heating

4 R

Under-tile heating is a floor heating system designed primarily for existing homes with either cement or timber floors where the heating is provided by in-screed cables.

This type of heating is often known as ‘direct acting’ due to its ability to heat up quickly.  Under-tile heating may also be called ‘in-screed heating’ because the cables are not installed within a full concrete slab, but rather covered with a cement-based screed.

Under-tile heating cables available:

Inscreed Heating
Part No.
Watts
Length
Reference Link
SIEDM125
125w
6.5m
SIEDM195
195w
10m
SIEDM215
215w
11m
SIEDM325
325w
16.5m
SIEDM420
420w
21.0m
SIEDM470
470w
23.5m
SIEDM600
600w
29.5m
SIEDM660
660w
33.5m
SIEDM820
820w
40.5m
SIEDM1030
1030w
51m
SIEDM1150
1150w
58m
SIEDM1440
1440w
73.0m
SIEDM1640
1640w
81.0m
SIEDM1940
1940w
98.0m
SIEDM2410
2410w
122.0m
SIEDM3000
3000w
150.0m
SIEDM3520
3520w
177.0m
SIEDM4050
4050w
205.0m
SIEDM4980
4980w
250.0m

Heating Mats

floormat_therm

The ELEKTRA Heating Mat features a twin-heating cable attached to a fibreglass mat with a single-sided power supply and is thermostat controlled.

ELEKTRA Heating Mats may be used under any type of floor suitable for heating; ie. under any floor which radiates heat easily, such as floor tiles, slate, low pile carpet or some wooden floor panels. They are fixed directly to a prepared floor in a screed of self-levelling compound or a cement-based screed.

At 0.5m wide and available in lengths from 2m to 16m they can be easily shaped to suit the floor layout. No special tools are required.

Heating mats available:

Part No. Watts Mat Size
TXMD.5/2 160w 0.5 x 2.0m
TXMD.5/3 240w 0.5 x 3.0m
TXMD.5/4 320w 0.5 x 4.0m
TXMD.5/5 400w 0.5 x 5.0m
TXMD.5/6 480w 0.5 x 6.0m
TXMD.5/7 560w 0.5 x 7.0m
TXMD.5/8 640w 0.5 x 8.0m
TXMD.5/9 720w 0.5 x 9.0m
TXMD.5/10 800w 0.5 x 10.0m
TXMD.5/12 960w 0.5 x 12.0m
TXMD.5/14 1120w 0.5 x 14.0m
TXMD.5/16 1280w 0.5 x 16.0m



Heating Mat Kits
Part No.
Watts
Mat Size
Reference Link
KITXMD.5/2
160w
0.5 x 2.0m
KITXMD.5/3
240w
0.5 x 3.0m
KITXMD.5/4
320w
0.5 x 4.0m
KITXMD.5/5
400w
0.5 x 5.0m
KITXMD.5/6
480w
0.5 x 6.0m
KITXMD.5/7
560w
0.5 x 7.0m
KITXMD.5/8
640w
0.5 x 8.0m
KITXMD.5/9
720w
0.5 x 9.0m

PubSun Comfort Heaters

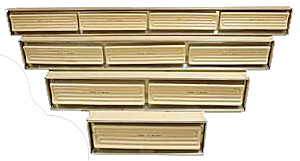

pubsun1to4The PUBSUN is a safe and simple inside & outside heating system that allows you to provide warmth and comfort simply and effectively. The PUBSUN ceramic infra-red technology is environmentally friendly, easy to install, safe and convenient. The heaters warm up in minutes and do not require regular servicing.
For Furthur Information Please Visit the PUBSUN Website pubsunlogo

Radiant Heaters

Our radiant heaters are constructed from a strong heavy duty aluminium frame, stainless steel reflector, reliable tubular sheathed elements and high temperature wiring and terminal connections. They can be cable mounted on walls using optional mounting hinges, or from the ceiling either flush mounted or suspended by a chain, to allow heat to be directed exactly where it is required.

The radiant heaters incorporate 1mm diameter alloy sheathed elements. Single ended connection to ceramic terminal blocks is incorporated in all models. All units are suitable for fixed wiring.

CAT No.
Wattage
Element Heated Length
Overall Length
Net Weight
Heater only
With Kit
RU08
RU08C
800W
380mm
597mm
1.2kg
RU11
RU11C
1100W
535mm
738mm
1.6kg
RU15
RU15C
1500W
715mm
929mm
2.0kg
RU18
RU18C
1800W
860mm
1072mm
2.2kg

RU24

RU24C
2400W
1150mm
1367mm
2.7kg

RU30

RU30C
3000W
1420mm
1635mm
3.3kg

RU36

RU36C
3600W
1680mm
1896mm
4.0kg
