Industrial Heating

Belt Heaters (Drum)

belt heaterBelt Heaters are Flexible and can be wrapped around a drum. Suitable For low temperatures to 40°C such as light dudty applications heating standard steel drums and containers. Ideal fo viscous products such as honey, oils, waxes, greases, resins and like chemicals. Belts come complete with silicone rubber lead, 10amp 3pin plug and an adjustable thermostat.

Capacity Volts Watts Description Other Infomation
4 gal/18 litre 240v 300W Silicone Rubber With Thermostat Suits 265 to 320mm Diameter Drums
12 gal/55 Litre 240v 500W Silicone Rubber With Thermostat Suits 320 to 360mm Diameter Drums
25 gal/114 Litre 240v 750W Silicone Rubber With Thermostat Suits 430 to 480mm Diameter Drums
44 gal/200 Litre 240v 1000W Silicone Rubber With Thermostat Suits 545 to 595mm Dia Drums

Hotplate Heater (Drum)

Made from either cast aluminium of hot dip galvanised mild steel. Units are designed for rugged use and come complete with Thermostat. Ideal for products that suit bottome heating or when products are pumped. The hotplate is in contact with the bottom of the drum for efficient heat transfer.

Description
Base hotplate, 240v, 2400w, 44gal/200 litre, cast aluminium, 60-260°C Thermostat, lead and 3 pin plug top.
Base hotplate, 240v, 2400w, 44gal/200 litre, cast aluminium, 60-260°C Thermostat, lead and 3 pin plug top.

Bunghole Heaters

Bunghole Heaters are designed to fit through the bunghole on 200 litre(44Gal) drums. The Vertical section of the element is not heated to allow for low drum volume heating. The Element itself is made from stainless steel. Ideal for Non-volatile water based mixtures.

Description
Immersion Heater, 240v, 3.6kW, Bung Type, 44Gal/200 litre, 30-110°C thermostat.

Wax Immersion (Drum)

The Wax Immersion heater is supplied with a thermostat, lead and 3 point plug top. The heater is placed on top of the solid surface of the drum contents and then it progressivly melts its way down the drum. Used for solidified materials such as waxes and pharmaceutical products where heat penetration is difficult.

Description
Immersion Heater, 240v, 2.4kW, 44 Gal/200 Litre, Open top drum wax melting, 30-110°C thermosta

Over The Side (Drum Heater)

tg3The Portable Immersion element we stock is rated at 2400w / 240v and comes complete with 1.8m flex and 3 pin plug. Ideal for pail heating and over the side applications.

Band Heaters (Drum)

We can supply a wide variety of band heaters and band elements to suit a wide variety of applications. With such a wide variety of options available it is impossible to list all the parts available on this website. Should you require band heaters please Contact Us for more information.

Triple Immersion Elements

BJC41 Series: 235V Elements with 31kW/m2 Sheath Loading

Low Watt density elements for use in applications where sensitive solutions need heating or elements may be subjected to a build up of a solution on the sheath. These elements are suited for 235V single Phase 415V/235V 3 phase with either tied or floating neutral connection.

Part #
Wattage
Penetration
Wired @ 415V Delta
Further Information
BJC41A000
1500W
500mm
4.67kW
Fact Sheet
BJC41B000
2400W
600mm
7.49kW
BJC41C000
3600W
620mm
11.2kW
BJC41D000
4800W
825mm
15kW
BJC41E000
6000W
1260mm
18.7kW

BJC50 Series: 235V Elements with 77.5kW/m2 Sheath Loading

Medium Watts density elements for use in water heating type applications. suited to 235V single phase or 415V/235V 3 phase connection using either tied or floating neutral.

Part #
Wattage
Penetration
Wired@235V Series
Further Information
BJC50A000
3600W
330mm
400W
Further Information
BJC50B000
4800W
330mm
533W
BJC50O000
6000W
560mm
667W
BJC50C000
7200W
730mm
800W
BJC50D000
9600W
965mm
1066W

BJC31 Series: 415V elements with 77.5kW/m2 Sheath Loading

Medium Watt Density elements for use in water type applications. Suited to 415V single phase or three wire 3 phase 415V (Delta) connection.

Part #
Wattage
Penetration
Wired@235V Series
Further Information
BJC50A000
3600W
330mm
400W
Further Information
BJC50B000
4800W
330mm
533W
BJC50O000
6000W
560mm
667W
BJC50C000
7200W
730mm
800W
BJC50D000
9600W
965mm
1066W

BJC04-0 Series: 235V Elements with 116kW/m2 Sheath Loading

High Watt loading series for use in applications where space is limited. Suited to 235V single phase or 415V/235V 3 phase connection using either tied or floating neutral.

Part #
Wattage
Penetration
Wired@235V Series
Further Information
BJC04A000
10kW
620mm
1.111kW
Fact Sheet
BJC04B000
15kW
930mm
1.667kW
BJC04C000
20kW
1180mm
2.222kW

BJC04-1 Series: 415V Elements with 116kW/m2 Sheath Loading

High Watt loading series for use in applications where space is limited. Suited to 415V single phase or three wire 3 phase 415V (Delta) Connection.

Part #
Wattage
Penetration
Wired@235V Star
Wired@235V Series
Further Information
BJC04A001
10kW
620mm
3.333kW
360W
Fact Sheet
BJC04B001
15kW
930mm
5kW
535W
BJC04C001
20kW
1180mm
6.666kW
715W

Spiral Elements

Part Number Description
SP0 400W SPIRAL
SP1 Infrared Spiral Elem 500-550W
SP10 INFRARED SPIRAL Element 1200W
SP11 INFRARED SPIRAL Element 1450W
SP12 INFRARED SPIRAL Element 1500W
SP13 INFRARED SPIRAL Element 2000W
SP14 INFRARED SPIRAL Element 2200W
SP2 Infrared Spiral Element 600W
SP3 INFRARED SPIRAL Element 700W
SP4 INFRARED SPIRAL Element 750W
SP5 INFRARED SPIRAL Element 800W
SP6 INFRARED SPIRAL Element 850W
SP7 INFRARED SPIRAL Element 900W
SP8 INFRARED SPIRAL Element 1000W
SP9 INFRARED SPIRAL Element 1100W

Accessories

Part #
Description
Further Information

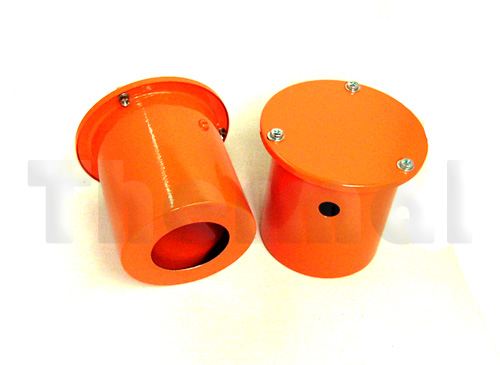

PM511
PM511
Y-Spun Terminal Cover t/s 2″ B.S.P Immersion Elements
Fact Sheet

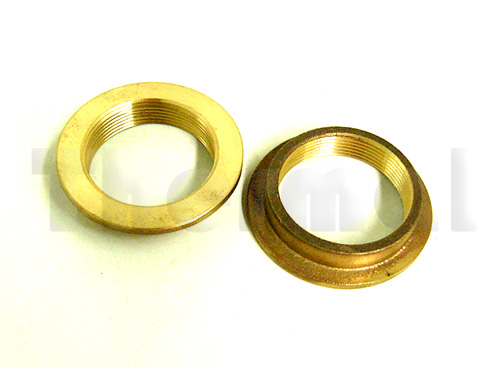

2inLocknut
LOCKNUT
Lock Nut t/s 2″ B.S.P Immersion Elements

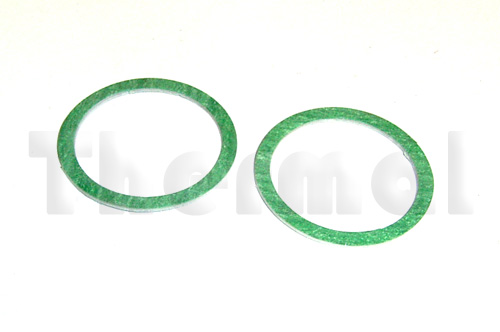

gaskets
2″ Gasket
Gasket t/s 2″ B.S.P Immersion Elements

Other Spares

Image Part No. Description
NUT 1 1″ BSP Locknut
NUT 1 1/4 1 1/4″ BSP Locknut
NUT 2 2″ BSP Locknut
TSTBRACKET Bracket Clamp TST Thermostats
1264-21 Gasket for bolt on elements
  1094-28 Gasket Seal for 1″ B.S.P water heating element

“U” Form 46.5kW/m2 Watts Density Air Finned Elements

Part Number
Watts
Volts
Max Reach
Weight (kg)
GW4061U
600
240
230mm
0.40
GW4062U
750
240
280mm
0.50
GW4063U
1000
240
378mm
0.60
GW4064U
1250
240
430mm
0.75
GW4065U
1500
240
534mm
1.00
GW4066U
1750
240
580mm
1.10
GW4067U
2000
240
670mm
1.25
GW4069U
2500
240
830mm
1.50
GW4071U
3000
240
980mm
1.80
GW4072U
3500
240
1164mm
2.10
GW4073U
4000
240
1280mm
2.30
GW4074U
4500
240
1468mm
2.60
GW4075U
5000
240
1580mm
2.90

“W” Form 46.5kW/m2 Watts Density Air Finned Elements

Part Number
Watts
Volts
Max Reach
Weight (kg)
GW4062W
750
240
155mm
0.50
GW4063W
1000
240
205mm
0.60
GW4064W
1250
240
235mm
0.75
GW4065W
1500
240
285mm
1.00
GW4066W
1750
240
310mm
1.10
GW4067W
2000
240
365mm
1.25
GW4069W
2500
240
435mm
1.50
GW4071W
3000
240
510mm
1.80
GW4072W
3500
240
600mm
2.10
GW4073W
4000
240
660mm
2.30
GW4074W
4500
240
755mm
2.60
GW4075W
5000
240
810mm
2.90

Triple “U” Form 46.5kW/m2 Watts Density Air Finned Elements

Part Number
Watts
Volts
Max Reach
Weight (kg)
GW4065X
1500
240
200mm
1.00
GW4066X
1750
240
215mm
1.10
GW4067X
2000
240
250mm
1.25
GW4069X
2500
240
300mm
1.50
GW4071X
3000
240
350mm
1.80
GW4072X
3500
240
410mm
2.10
GW4073X
4000
240
450mm
2.30
GW4074X
4500
240
515mm
2.60
GW4075X
5000
240
550mm
2.90

“U” Form 60kW/m2 Watts Density Air Finned Elements

Part Number
Watts
Voltage
Max Reach
Weight (kg)
GW4471U
750
240
228mm
0.40
GW4472U
1000
240
283mm
0.50
GW4473U
1250
240
348mm
0.60
GW4474U
1500
240
408mm
0.70
GW4475U
1750
240
460mm
0.80
GW4476U
2000
240
528mm
1.00
GW4477U
2500
240
639mm
1.20
GW4478U
3000
240
748mm
1.40
GW4479U
3500
240
860mm
1.50
GW4480U
4000
240
975mm
1.80
GW4481U
4500
240
1110mm
2.10
GW4482U
5000
240
1237mm
2.30
GW4483U
6000
240
1455mm
2.60

“W” Form 60kW/m2 Watts Density Air Finned Elements

Part Number
Watts
Voltage
Max Reach
Weight (kg)
GW4472W
1000
240
154mm
0.50
GW4473W
1250
240
184mm
0.60
GW4474W
1500
240
218mm
0.70
GW4475W
1750
240
240mm
0.80
GW4476W
2000
240
278mm
1.00
GW4477W
2500
240
334mm
1.20
GW4478W
3000
240
384mm
1.40
GW4479W
3500
240
439mm
1.50
GW4480W
4000
240
500mm
1.80
GW4481W
4500
240
569mm
2.10
GW4482W
5000
240
632mm
2.30
GW4483W
6000
240
738mm
2.60

Multi “U” Form 60kW/m2 Watts Density Air Finned Elements

Part Number
Watts
Voltage
Max Reach
Weight (kg)
GW4476X
2000
240
198mm
1.00
GW4477X
2500
240
237mm
1.20
GW4478X
3000
240
273mm
1.40
GW4479X
3500
240
311mm
1.50
GW4480X
4000
240
349mm
1.80
GW4481X
4500
240
394mm
2.10
GW4482X
5000
240
436mm
2.30
GW4483X
6000
240
509mm
2.60
